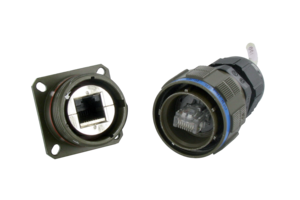

Rugged Ethernet Connectors

RJF TV Cat5e, Cat6, Cat6A

Rugged Ethernet RJ45 connectors

for harsh environments

Key features
● Sealed against fluids and dusts (IP68)
● Shock, vibration and traction resistant
● No cabling operation in field and no tools required
● Mechanical coding/polarization (4 positions)

Applications
● Battlefield communication, C4ISR
● Data acquisition & transmission in harsh environments
● Armoured vehicles
● Battleships
● Rail Mass Transit

RJF TV Cat5e, Cat6, Cat6A

Reduced flange receptacle: Lighter & smaller

RJ45 connectors for severe environments

Key features
● Smaller: 41% footprint surface reduction
● Lighter: 15% lighter than standard RJF TV receptacles
● RJFTV Reduced flange receptacle is available in Cat5.e, Cat.6 and Cat6A.
● MIL-DTL-38999 coupling mechanism
● Mates with standard RJF TV plugs & caps
● 3 platings : Olive Drab Cadmium, Nickel, Black Zn Ni

Applications
● C4ISR, Battlefield, Ground vehicles
● Navy
● Railways

RJF Cat5e, Cat6, Cat6A

Rugged Ethernet RJ45 connectors for harsh environments

Key features
● Compliant with IEC 60603-7 variante 11
● Bayonet coupling (“Audible & Visual” coupling signal )
● Robust metallic shells based on MIL-DTL-26482 H – Shell size 18
● RJ45 cordset retention in the plug: 100N in the axis

Applications
● Oil & Gas
● Special machines
● Industrial process control
● Outdoor Data,
● VoIP, IPTV
● Robotics

RJF RB

Ethernet RJ45 connection system for industrial harsh environment

Key features
● Sealed against fluids and dust (IP68)
● Shock, vibration and traction resistant
● No cabling operation in field, no tools required

Applications
● Wireless Base Stations & Access Points
● Video Control / CCTV
● Robotics
● Industrial process control CNC machines
● Special machines Motion control
● Tele-maintenance

µCom 10 Gb+

Miniature, high speed Cat6A & Cat7 Ethernet connector

Key features
● 10Gb+: exceeds 10Gb/s ethernet following IEEE 802.3an-2006: 10GBase-T
● Cat.6A connector according to TIA568C.2 and ISO/IEC11801 standard
● 15mm max external diameter Cat6A connector
● Environmental testing based on MIL-DTL-38999 Series III military spec (Thread version)
● Environmental testing based on MIL-DTL-26482 military specifications (Push Pull version)
● Available also in 38999 Series III, Shell size 11, see TV µCom 10 Gb+

Applications
● Battlefield Communication, C4ISR
● Ground vehicles
● Commercial aerospace
● Military avionics
● Rail Mass Transit

RJF 544

Ethernet RJ45 connection system for industrial harsh environment

Key features
● Compliant with IEC 60603-7 variante 12
● Shock, vibration and traction resistant
● No cabling operation in field and no tools required
● Sealed against fluids and dust (IP68)

Applications
● Wireless Base Stations & Access Points
● Video Control / CCTV
● Robotics
● Industrial process control, CNC machines
● Special machines

TVµCom 10 Gb+

Harsh environment 10Gb Ethernet Cat6A & Cat7 connectors

Key features
● Based on MIL-DTL-38999 series III – Shell size 11
● 10Gb+: exceeds 10Gb/s Ethernet following IEEE 802.3an-2006 : 10GBase-T
Cat.6A connector according to TIA568C.2 and ISO/IEC11801 standard
● Aluminum, stainless steel and marine bronze shell

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics
● Rail Mass Transit

RJ45/M12 adaptor

For M12 D coded based Networks

Key features
● RJ45 to M12 D coded receptacle
● Rolling stock applications
● Plastic snap cap on RJ45 side

Applications
● Rail Mass Transit

RJF TV ATEX Zone 2 versions

Explosion proof Ethernet solutions for Zone 2

Key features
● EN60079-15 standard: within Zone 2 and class I, Division 2, as low power non sparking connectors
● Available in RJ 11

Applications
● Oil & Gas: Geophysics, Drilling, Transportation, Downstream

RJF TV Cordsets & jumpers

Factory tested and ready to install

Key features
● RJF TV cordsets with tactical Ethernet Cable
● RJF TV Receptacle with RJ45 Back End

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics
● Industrial

µCom Cordsets & Jumpers

Factory tested and ready to install

Key features
● 10 Gb Cat7
● Reinforced PUR Jacket
● Miniature 15mm μCom plug on each side
● μCom – RJ45 Jumper
● Consult us for standard lengths

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics
● Industrial

MILVA NGVA D38999 Cordsets & Jumpers

Factory tested and ready to install cordsets according to MILVA NVGA

Key features
● Ethernet and USB overmolded cables per NGVA STANAG 4754 standard (NATO Generic Vehicle Architecture).
● Amphenol MIL-DTL-38999 Series III plugs, Aluminum
● 3 platings : Black Zinc Nickel, Olive Drab Cadmium, Nickel
● 3 signal possibilities
● Two USB 2.0 ports with standard 9-35 layout
● One 1Gb Cat6 Ethernet port with standard 11-35 layout
● Two 1Gb Cat6 Ethernet ports with standard 13-35 layout
● 3 cordsets terminations Straight plug (more standard), Right angle plug, Free end
● 7 lengths: 0.75 m, 1.0 m, 1.5 m, 2.0 m, 3.0 m, 4.0 m and 5.0 m
● Environment resistance Per MIL-DTL-38999 Series III except operating ● temperature range: -40°C / +85°C (cables limits)
● IP68 sealed when mated onto receptacle or cap

Applications
● Ground Vehicles Vetronics
● Remote controled Weapon turret
● Military Ethernet & USB networks
● Ethernet Switches
● Battlefield CommunicationsBattlefield Communication
● Grounded vehicles
● Military avionics

RJ45 tactical cordsets

Ethernet Cat5e, Cat6, Cat6A & Cat7 cordset for harsh environments

Key features
● 1Gb Cat5e, Cat6, 10 Gb Cat6A & Cat7
● Reinforced PUR Jacket
● Halogen free
● Double Shielding
● Cable also available in reels of 100 & 300 m

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics
● Industrial

Rugged USB

TVμCom USB3.0

Multi-pin USB3.0 Connectors for harsh environments

Key features
● USB specification 3.0.
● Data rates up to 5Gb/s for high speed USB.
● Hot pluging : enables connection and disconnection while the system is running.
● 4 pairs totally insulated throughout the connector : minimum cross-talk between pairs.
● Patented special interfacial shapes : minimum perturbation at the interface of each pair.

Applications
● C5ISR, Battlefield, Ground Vehicles
● Navy
● Commercial Aerospace
● Railway

μCom USB3.0

Miniature multi-pin USB3.0 Connectors for harsh environments

Key features
● USB specification 3.0.
● Data rates up to 5Gb/s for high speed USB.
● Hot pluging : enables connection and disconnection while the system is running.
● 4 pairs totally insulated throughout the connector : minimum cross-talk between pairs.
● Patented special interfacial shapes : minimum perturbation at the interface of each pair.

Applications
● C5ISR, Battlefield, Ground Vehicles
● Navy
● Commercial Aerospace
● Railway

USB3CF TV

Reinforced USB type-C connectors for harsh environments.

Key features
● Thread coupling, MIL-DTL-38999 series III type
● Fully reversible connector, various data transmission capabilities and power delivery
● Sealed against fluids and dusts (IP68)
● Shell size 11

Applications
● Battlefield Communication
● Ground vehicles
● Military computers

USBF TV & USB3F TV

Reinforced USB2.0 & USB3.0 connectors for harsh environments

Key features
● Based on MIL-DTL-38999 series III
● Threaded locking mechanism
● Sealed against fluids and dusts (IP68)
● Available in USB 3.0

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics
● Industrial

ROK

Rugged Oval Key

Key features
● Available capacities : 16, 32, 64, 128 & 256Gb.
● Compatible with any USB port receptacle.
● USB3.2 Gen1 max transfer rate : 5 Gb/s

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics Industrial

USB3 FTV Memory Keys

USB3.2 Gen1 Reinforced Memory Keys for data storage in harsh environment

Key features
● Available capacities : 32, 64, 128 & 256Gb
● USB3.2 Gen1 max transfer rate : 5 Gb/s
● Compatible only with USB3FTV or USBFTV receptacles
● Tri Start Thread coupling mechanism (MIL-DTL-38999 series III type) with anti-decoupling device

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics Industrial

USB3F TV – Reduced Flange

Lighter, smaller, USB 3.0 connector

Key features
● Smaller: 40% footprint surface reduction
● Lighter: 15% lighter than standard USB3F TV receptacles
● MIL-DTL-38999 coupling mechanism
● Mates with standard USB3F TV plugs & caps
● 3 platings: Olive Drab Cadmium, Nickel, Black Zn Ni
● USB3.0

Applications
● C4ISR, ground vehicle, navy, industry
● Embedded computers
● Data acquisition and transmission in harsh environment
● Battlefied communication

USB Extender / Amplifier

Extend your USB cordset connection length over long distances

Key features
● Based on MIL-DTL-38999 series III
● Dedicated to applications where the USB cable length is longer than 4.8 meters which is the limit of USB specification
● Extension cord of 4.8 m (15,7 ft), 4 time stackable in order to reach 19.2 m (63ft)
● Self-powered

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics Industrial

MILVA NGVA USB Cordsets & Jumpers

Factory tested and ready to install cordsets according to MILVA NVGA

Key features
● Ethernet and USB overmolded cables per NGVA STANAG 4754 standard (NATO Generic Vehicle Architecture).
● Amphenol MIL-DTL-38999 Series III plugs, Aluminum
● 3 platings : Black Zinc Nickel, Olive Drab Cadmium, Nickel
● 3 signal possibilities
● Two USB 2.0 ports with standard 9-35 layout
● One 1Gb Cat6 Ethernet port with standard 11-35 layout
● Two 1Gb Cat6 Ethernet ports with standard 13-35 layout
● 3 cordsets terminations Straight plug (more standard), Right angle plug, Free end
7 lengths: 0.75 m, 1.0 m, 1.5 m, 2.0 m, 3.0 m, 4.0 m and 5.0 m
● Environment resistance Per MIL-DTL-38999 Series III except operating temperature range: -40°C / +85°C (cables limits)
● IP68 sealed when mated onto receptacle or cap

Applications
● Ground Vehicles Vetronics
● Remote controled Weapon turret
● Military Ethernet & USB networks
● Ethernet Switches
● Battlefield Communications

USB Field TV Cordsets & Jumpers

USBF TV & USB3F TV with USB cables cordsets

Key features
● USB2.0 & USB 3.0
● Reinforced PUR Jacket
● 38999 based USBFTV plug on each side USBF TV – USB Jumper
● Consult us for standard lengths (5 m max)

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics
● Industrial

USB 2.0 & 3.0 Tactical Cordsets

USB2.0 & USB3.0 cordset for harsh environments

Key features
● USB 2.0 and USB 3.0
● Reinforced PUR Jacket
● Halogen free
● Double shielding
● Consult us for standard lengths (5m max)

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics
● Industrial

MDP FTV

Mini DisplayPort interconnect system for harsh environments

Key features
● Tri Start Thread coupling mechanism (MIL-DTL-38999 series III type) with anti-decoupling device.
● Shell size 13
● No cabling operation in field and no tools required
● Data Transmission:
● Display 1.4 protocol
● Transmission bandwidth : 32.4 Gbit/s with 8.1 Gbit/s per lane
● Can support 8K UHD (7680 × 4320) at 60 Hz or 4K UHD (3840 × 2160) at 120 Hz

Applications
● C5ISR, Battlefield communications
● Ground vehicles
● Navy
● Railways

HDMI FTV

HDMI connection system for harsh environment

Key features
● Tri Start Thread coupling mechanism (MIL-DTL-38999 series III type) with anti-decoupling device.
● Shell size 17.
● No cabling operation in field and no tools required.
● Data Transmission:
   ● HDMI 2.0 protocol.
   ● Transmission bandwidth : 18 Gbit/s with 6 Gbit/s per lane.
   ● Can support 4K UHD (3840 × 2160) at 60 Hz.

Applications
● Battlefield Communication
● Grounded vehicles
● Military avionics Industrial
