Rakon’s frequency control products and timing solutions enable the lightning speed of 5G networks, precision positioning for autonomous vehicles, synchronisation for cloud computing and much more. Our products have even made it to Mars. Rakon’s products are at the heart of much of today’s communication and positioning technology.
Rakon 的頻率控制產品和時間穩定解決方案可實現 5G 網絡的高速速度、自動駕駛汽車的精確定位、雲端計算的同步等等。 其相關產品甚至登上了火星。
Rakon能為現今通信和定位技術，提供核心解決方案。
Rakon’ products:
|
|
|
|
|||||||
|

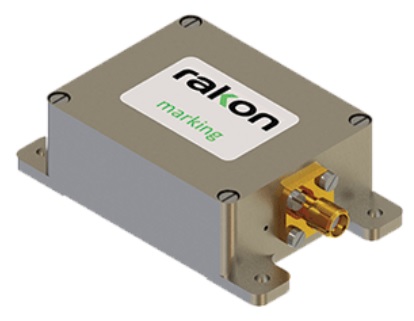

OCXO & OCSO |
|||||||||
|
Mercury™ and Mercury+™ Small Form Factor IC OCXO
|
|
Nominal Frequency (Fn) 10 to 50 MHz |
|
Frequency Stability (FvT) ± 5 to ± 50 ppb |
|
Temperature Range (°C) -40 to 95 °C |
|
Long Term Stability: ±0.3 to 3 ppm/year |
|
|
High End Telecom Discrete OCXO
|
|
Nominal Frequency (Fn) 5 to 65 MHz |
|
Frequency Stability (FvT) ± 0.1 to 10 ppb |
|
Temperature Range (°C) -40 to 85 °C |
|
Long Term Stability: Up to ±0.02 ppb/day |
|
|
PPS Disciplined OCXO
|
|
Nominal Frequency (Fn) 10 to 20 MHz |
|
Frequency Stability (FvT) 0.5 to 0.1 ppb pk-pk |
|
Temperature Range (°C) -40 to 85 °C |
|
Long Term Stability: Up to ±0.1 ppb/day |
|
|
Ultra Low Phase Noise OCXO (LNO)
|
|
Nominal Frequency (Fn) 80 to 125 MHz |
|
Noisefloor: -178 dBc/Hz @100MHz |
|
Temperature Range (°C) -40 to 85 °C |
|
Supply Voltage (Vcc) 12 or 15 VDC |
|
|
Ultra Low Phase Noise OCSO (LNO)
|
|
Nominal Frequency (Fn) 0.32 to 10 GHz |
|
Noisefloor: -178 dBc/Hz @0.5GHz |
|
Temperature Range (°C) -40 to 70 °C
|
|
Frequency Stability (FvT) ±1 to ±3 ppb
|
|
|
High Stability OCXO
|
|
Nominal Frequency (Fn) 5 to 10 MHz |
|
Noisefloor: -160 dBc/Hz @5MHz |
|
Temperature Range (°C) 0 to 50 °C |
|
ADEV 8×10-14
|
|
|
High Reliability Space OCXO
|
|
Nominal Frequency (Fn) 5 to 130 MHz |
|
Frequency Stability (FvT) ±0.1 to 100 ppb |
|
Temperature Range (°C) -40 to 85 °C |
|
Stability Class Up to 10-10
|
|
|
NewSpace OCXO
|
|
Nominal Frequency (Fn) 10 to 125 MHz |
|
Frequency Stability (FvT) ±0.1 to 1000 ppb |
|
Temperature Range (°C) -20 to 70 °C |
|
Supply Voltage (Vcc) 3.3V , 5V , 12V
|
|
|
|
|
|
|
|
|
|
|
||
|

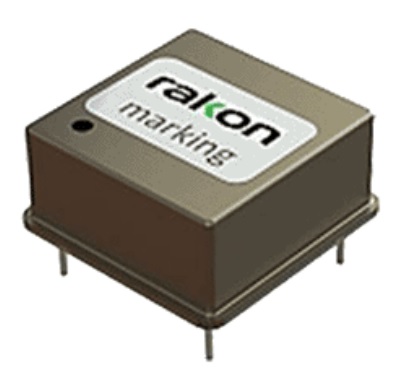

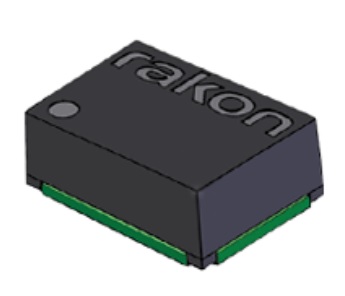

TCXO |
|||||||||
|
High Stability TCXO
|
|
Nominal Frequency (Fn) 9.5 to 52 MHz |
|
Frequency Stability (FvT) ±0.5 to 2.5 ppm |
|
Temperature Range (°C) -40 to 85 °C |
|
Phase Noise (P/N) Typ. P/N @26 MHz -90 to -93 dBc/Hz @10 Hz -117 to -139 dBc/Hz @1 kHz -151 to -157 dBc/Hz @100 kHz
|
|
|
Ultra Stable TCXO |
|
Nominal Frequency (Fn) 1.25 to 52 MHz |
|
Frequency Stability (FvT) ±0.05 to 1.5 ppm |
|
Temperature Range (°C) -40 to 105 °C |
|
Phase Noise (P/N) Typ. P/N @15 to 50 MHz -83 to -103 dBc/Hz @10 Hz -132 to -148 dBc/Hz @1 kHz -135 to -153 dBc/Hz @100 kHz
|
|
|
High Frequency TCXO |
|
Nominal Frequency (Fn) 10 to 204.8 MHz |
|
Frequency Stability (FvT) ±0.25 to 0.28ppm |
|
Temperature Range (°C) -40 to 85 °C |
|
Phase Noise (P/N) Typ. P/N @98.304 MHz -82 dBc/Hz @10 Hz -132 dBc/Hz @1 kHz -149 dBc/Hz @1 MHz
|
|
|
Emergency Locator Beacons TCXO |
|
Nominal Frequency (Fn) 10 to 20 MHz |
|
Frequency Stability (FvT) ±0.2 ppm |
|
Temperature Range (°C) -55 to 70 °C |
|
Phase Noise (P/N) Typ. P/N @12.389 to 12.688 MHz -127 to -146 dBc/Hz @1 kHz
|
|
|
Low g-Sensitivity TCXO |
|
Nominal Frequency (Fn) 10 to 52 MHz |
|
Frequency Stability (FvT) ±0.2 to 0.5 ppm |
|
Temperature Range (°C) -55 to 105 °C |
|
g-Sensitivity 0.1 to 0.2 ppb/g typ.
|
|
|

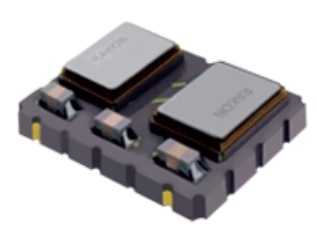

Hybrid TCXO |
|
Nominal Frequency (Fn) 10 to 50 MHz |
|
Frequency Stability (FvT) ±0.002 to 0.1 ppm |
|
Temperature Range (°C) -40 to 105 °C |
|
Typ. P/N @19.2 MHz
|
|
|
High Reliability Space TCXO |
|
Nominal Frequency (Fn) 10 to 375 MHz |
|
Frequency Stability (FvT) ±0.5 to 10 ppm |
|
Temperature Range (°C) -40 to 85 °C |
|
Phase Noise (P/N) Typ. P/N @100, 155 MHz -105 to -110 dBc/Hz @10 Hz -130 dBc/Hz @1 kHz -145 dBc/Hz @10 kHz
|
|
|
NewSpace TCXO |
|
Nominal Frequency (Fn) 80 and 100 MHz |
|
Frequency Stability (FvT) ±2 to 4 ppm |
|
Temperature Range (°C) -40 to 85 °C |
|
Max. P/N @100 MHz
|
|
|

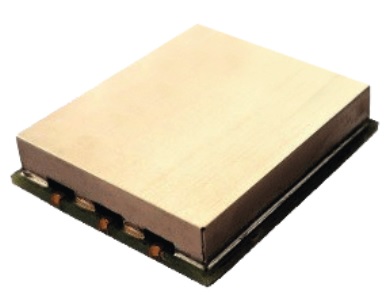

VCXO and VCSO |
|||||||||
|
Low Phase Noise VCXO |
|
Nominal Frequency (Fn) 1 and 2200 MHz |
|
Frequency Stability (FvT) ±15 to 50 ppm |
|
Temperature Range (°C) -40 to 105 °C |
|
Phase Noise (P/N) Typ. P/N @122.88, 153.6 MHz -103 to -109 dBc/Hz @100 Hz -148 to -154 dBc/Hz @10 kHz -155 to -174 dBc/Hz @1 MHz
|
|
|
High Frequency and Low Phase Noise VCSO |
|
Nominal Frequency (Fn) 500 and 2000 MHz |
|
Frequency Stability (FvT) ±100 ppm |
|
Temperature Range (°C) -40 to 85 °C |
|
Max. P/N @1 GHz
|
|
|
High Reliability Space VCXO |
|
Nominal Frequency (Fn) 0.032 and 94 MHz |
|
Frequency Stability (FvT) ±10 to 50 ppm |
|
Temperature Range (°C) -30 to 75 °C |
|
Long Term Stability
|
|
|
NewSpace VCXO and VCSO
|
|
Nominal Frequency (Fn) 5 and 1500 MHz |
|
Frequency Stability (FvT) ±13 to 60 ppm |
|
Temperature Range (°C) -55 to 125 °C |
|
Long Term Stability Up to ±5 ppm/year |
|
|

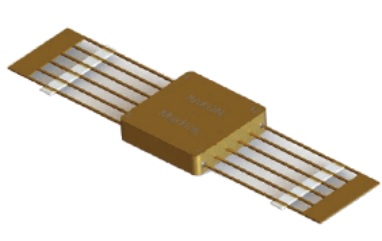

XO |
|||||||||
|
Low RMS Jitter XO |
|
Nominal Frequency (Fn) 8 to 2200 MHz |
|
Frequency Stability (FvT) ±15 to 50 ppm |
|
Temperature Range (°C) -40 to 85 °C |
|
RMS Phase Jitter 0.1 to 1 ps; 12 kHz to 20 MHz
|
|
|
High Reliability Defence XO |
|
Nominal Frequency (Fn) 1.5 to 1500 MHz |
|
Frequency Stability (FvT) ±20 to 30 ppm |
|
Temperature Range (°C) -55 to 125 °C |
|
Long Term Stability Up to ±15 ppm/10 years
|
|
|
High Reliability Space XO
|
|
Nominal Frequency (Fn) 0.256 to 100 MHz |
|
Frequency Stability (FvT) ±30 to 50 ppm |
|
Temperature Range (°C) -55 to 125 °C |
|
Long Term Stability ±15 ppm/18 years
|
|
|
NewSpace XO
|
|
Nominal Frequency (Fn) 8 to 1500 MHz |
|
Frequency Stability (FvT) ±30 ppm |
|
Temperature Range (°C) -55 to 125 °C |
|
Long Term Stability ±15 ppm/10 years |
|
|

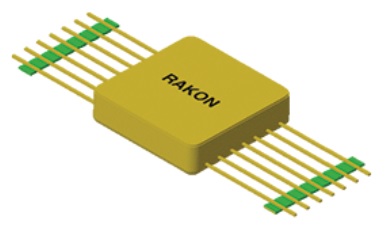

VCO |
|||||||||
|
Space VCO |
|
Nominal Frequency (Fn) 950 to 1450 MHz
|
|
Frequency drift 60 MHz
|
|
Temperature Range (°C) -10 to 55 °C |
|
Phase Noise (P/N) Typ. P/N
|
|
|
Defence VCO
|
|
Nominal Frequency (Fn) 980 to 1215 MHz |
|
Frequency drift 60 MHz |
|
Temperature Range (°C) -40 to 100 °C |
|
Phase Noise (P/N) Max. P/N |
|
|
Crystal Resonators |
|||||||||
|
Standard SMD Crystals
|
|
Nominal Frequency (Fn) 10 to 125 MHz |
|
Frequency Stability (FvT) ±10 to 50 ppm |
|
Temperature Range (°C) -40 to 85 °C |
|
Long Term Stability ±1 ppm/year
|
|
|
Tuning Fork Crystals
|
|
Nominal Frequency (Fn) 32.768 KHz |
Parabolic Coefficient -0.03 ppm/°C2
|
Temperature Range (°C) -40 to 85 °C |
Motional Capacitance 4.7 to 6.0 fF typ. |
||||
|
High Reliability Space Crystals
|
|
Nominal Frequency (Fn) 2 to 140 MHz |
Long Term Stability ± 0.5 ppm/20 years |
Temperature Range (°C) -55 to 125 °C |
Termination 3 to 5 |
||||
|
Crystal Filters |
|||||||||
|
Industry Crystal Filters |
|
Nominal Frequency (Fn) 3 to 250 MHz |
|
Bandwidth 0.001 to 1% |
|
Temperature Range (°C) -45 to 90 °C |
|
Insertion Loss 2 dB min. |
|
|
Space Crystal Filters |
|
Nominal Frequency (Fn) 5 to 150 MHz |
Bandwidth 0.001 to 1% |
Temperature Range (°C) -20 to 60 °C |
Insertion Loss 2 to 8 dB min. |
||||
|
我們能提供更多系統解決方案 對於太空市場，我們為不同類型的有效載荷和航天器提供rakon系統解決方案，包括用於電信巨型星座的主參考振盪器或主地主振盪器。我們還為現有雷達和電子戰系統提供改造和升級解決方案，從而提高整體系統性能並延長設備的使用壽命。特別是對於雷達，rakon專門從事客製化子系統的設計和製造，從客戶要求到生產和客戶提供全面性支援。 rakon在射頻和微波（頻段範圍從基頻到 18 GHz）、數位脈衝子系統和其他數位模組以及適用於陸基、海軍和機載系統等各種環境條件的擴展器和壓縮器方面擁有豐富的經驗。 更多解決方案，歡迎您與我們聯絡。謝謝 |
|||||||||
|
設備及系統解決方案 Equipment and System Solutions |
|||||||||
|
主參考振盪器(MRO) |
|||||||||
New Space MRO |
|||||||||
|
Product Name |
Image |
Package Size (LxWxH) |
Nominal Frequency (Fn) |
|
Frequency Stability (FvT) |
Phase Noise (P/N) |
|||
|---|---|---|---|---|---|---|---|---|---|
|
MRO NS Compact |
|
216 x 108 x 116 mm |
100, 200 MHz |
≤±1.5 ppb |
Typ. P/N @100 MHz -100 dBc/Hz @10 Hz -125 dBc/Hz @100 Hz -165 dBc/Hz @floor |
||||
|
MRO NewSpace |
|
226 x 120 x 105 mm |
10 to 240 MHz |
≤±1 ppb |
Typ. P/N @100 MHz -105 dBc/Hz @10 Hz -125 dBc/Hz @100 Hz -160 dBc/Hz @floor |
||||
Traditional Space MRO |
|||||||||
|
MRO HR |
|
240 x 270 x 240 mm |
5 to 200 MHz |
±0.1 ppb |
Typ. P/N @10 MHz |
||||
GNSS接收器 (GNSS Receivers)Applications: data monitoring, navigation algorithms like orbit propagation, clock synchronisation |
|||||||||
| Product Name | Image | Package Size (LxWxH) | Channel | Positive Accuracy | Temperature Range (°C) | Supply Voltage (Vcc) | |||
| GNSS TIMING |  |
128 x 110 x 64 mm | Up to 448 | <1.2 m;(800 km altitude) | -20 to 65°C | 5 to 28 V | |||
| GNSS SINGLE |  |
130 x 122 x 24 mm | Up to 448 | <1.2 m;(800 km altitude) | -30 to 70 °C | 3.3 to 32 V | |||
| GNSS DUAL | |
130 x 122 x 24 mm | Up to 448 | <1.2 m;(800 km altitude) | -30 to 70 °C | 3.3 to 32 V |
|||
| GNSS DB |  |
55 x 41 x 16 mm | Up to 448 | <1.2 m;(800 km altitude) | -30 to 70 °C | 3.3 V | |||
S-Band 收發器 (S-Band Transceiver)Applications: high data rate communications between satellites (inter-satellite links) or between satellites and ground stations |
|||||||||
| Rakon 的 New Space 軟體定義無線電是一款低 SWaP（尺寸、重量和功率）全雙工設備。它們專為測控子系統以及衛星間（星間鏈路）或衛星與地面站之間的高資料速率通訊而設計。 New Space 軟體定義無線電 具有高度可設定性，可在軌靈活調整資料速率和頻率。 我們提供兩種 New Space 軟體定義無線電產品：短期任務的 1 年以上設備，以及用於長期任務的 5 年以上設備。 |
|||||||||
| 主要特點： | |||||||||
|
|||||||||
| Transmission frequency range | Reception frequency range | Maximum output power | Frequency stability | Supported modulations | Package Size (LxWxH) | ||||
| Short missions | 2.2 to 2.29 GHz | 2 to 2.1 GHz | 2 W (33 dBm) | 0.5ppm / 1st year | BPSK / QPSK / GMSK | 95 x 95 x 50 mm | |||
| Long missions | 2.2 to 2.29 GHz | 2 to 2.1 GHz | 2 W (33 dBm) | 2ppm / 12 years | BPSK / QPSK / GMSK | 95 x 95 x 50 mm | |||
鎖相振盪器(Phase Locked Oscillators)Applications: high and stable frequencies for LEO and small GEO satellites |
|||||||||
| Product Name | Image | Package Size (LxWxH) | Nominal Frequency (Fn) | Temperature Range (°C) | Supply Voltage (Vcc) | Phase Noise (P/N) | |||
|---|---|---|---|---|---|---|---|---|---|
| PLO NS LN |  |
50 x 50 x 16 mm | 10 to 120 MHz | -25 to 60°C | 12 V | Typ. P/N @10 MHz -120 dBc/Hz @100 Hz -150 dBc/Hz @10 kHz -155 dBc/Hz @1 MHz |
|||
